1. Dh-pol-fp380 remapping station
The height of the column is 500mm, the bottom plate is 380 x 260mm, the adjustment range of the fine-tuning platform is 20mm~+20mm with camera bracket and light source bracket
2. Mer-132-30um industrial camera
Resolution 1292 (H) x 964 (V)
The frame rate of 30 FPS
Sensor type 1/3 "CCD
Pixel sizes are 3.75 microns by 3.75 microns
Spectrum of black and white
Image data format MONO8 /MONO12 / RAW8 (Bayer) /RAW12 (Bayer)
Data interface Mini USB2.0
Power consumption rating <1W (@5v DC)
Lens interface C
Mechanical dimensions 29 x 29 x 29 mm, without connectors
Operating temperature 0° C ~ +60° C
Working humidity 10% ~ 80%
The weight 42 g
3. Mer-132-30uc industrial camera
Resolution 1292 (H) x 964 (V)
The frame rate of 30 FPS
Sensor type 1/3 "CCD
Pixel sizes are 3.75 microns by 3.75 microns
Spectrum of black and white
Image data format MONO8 /MONO12 / RAW8 (Bayer) /RAW12 (Bayer)
Data interface Mini USB2.0
Power consumption rating <1W (@5v DC)
Lens interface C
Mechanical dimensions 29 x 29 x 29 mm, without connectors
Operating temperature 0° C ~ +60° C
Working humidity 10% ~ 80%
The weight 42 g
4. Mer-500-7um industrial camera
Resolution 2592(H) x 1944(V)
Frame rate 7 frames per second
Sensor type 1/2.5 "line exposure CMOS
Pixel size 2.2m by 2.2m
Spectrum of black and white
MONO8 / RAW8 (Bayer) /MONO12 / RAW12 (Bayer)
Data interface Mini USB2.0
Power consumption rating <1W (@5v DC)
Lens interface C
Mechanical dimensions 29 x 29 x 29 mm, without connectors
Operating temperature 0° C ~ +60° C
Working humidity 10% ~ 80%
41 g in weight
5. Mer-500-7uc industrial camera
Resolution 2592(H) x 1944(V)
Frame rate 7 frames per second
Sensor type 1/2.5 "line exposure CMOS
Pixel size 2.2m by 2.2m
Spectrum black and white/color
MONO8 / RAW8 (Bayer) /MONO12 / RAW12 (Bayer)
Data interface Mini USB2.0
Power consumption rating <1W (@5v DC)
Lens interface C
Mechanical dimensions 29 x 29 x 29 mm, without connectors
Operating temperature 0° C ~ +60° C
Working humidity 10% ~ 80%
41 g in weight
6. M3z1228c-mp zoom lens
(Tele) 0.05 m-inf.(Wide) control aperture manual focus manual focal length manual object size 12mm 4.0(H)cm x 3.0(V)cm 1/2 "36mm 4.8(H)cm x 3.6(V)cm 1/2 "viewing Angle D 2/3" 50.4°-16.8° 1/2 "37.5°-12.5° H 41.0°-13.6° -13.6° 30.2° -10.6 ° V 31.2°-10.4° 22.8° -7.6 ° operating temperature -20°C + 50°C effective aperture Front 27.2mm Rear 12.1mm Rear focal distance Tele 13.5mm Wide 14.7mm deformation rate Tele 2/3" Flange bushing length 17.526mm fixing frame C interface filter size M35.5 P=0.5mm size f41.6mm x 53mm weight 105g
7. H0514-mp prime lens
Target surface 1/2" interface C focal length 5mm aperture F1.4
8. M0814-mp prime lens
Target surface 2/3" interface C focal length 8.0mm aperture f1.4-16c
9. M1214-mp prime lens
Target surface 2/3" interface C focal length 12.0mm aperture f1.4-16c
10. M1614-mp prime lens
Target surface 2/3" interface C focal length 16.0mm aperture f1.4-16c
11. M2514-mp prime lens
Target surface 2/3" interface C focal length 25.0mm aperture f1.4-16c
12. M3514-mp prime lens
Target surface 2/3" interface C focal length 35.0mm aperture f1.4-16c
13. M5018-mp prime lens
Target surface 2/3" interface C focal length 50.0mm aperture f1.8-16c
14. Wwl05-110ct telecentric lens
Magnification (x) 0.5
Object working distance (mm) 110
Like party biggest CCD size (Φ mm) 8.0 (1/2 ")
Like the 18.8
Numerical aperture 0.0132
Object resolution (m) 25.4
Depth of field (mm) 3.0
15. Wwl10-110ct telecentric lens
Magnification (x) 1.0
Object working distance (mm) 110
Like party biggest CCD size (Φ mm) 8.0 (1/2 ")
Like the 19.7
Numerical aperture 0.0255
Object resolution (m) 13.2
Depth of field (mm) 1.5
16. Pl-08-20w point light source
Point light source power 3W white light
17. Bts-120 *200W backlight
Backlight, luminous size 120*200mm, white light
18. Coax-100w coaxial light source
Coaxial light source, luminous size 100*100mm, white light
19. Dm-246w dome light source
Dome light source white light outer diameter 246mm, power 28W
20. Rin-120-5r-0r annular light source
Annular red light, outer diameter 120mm, inner diameter 58mm
21. Rin-120-5r-0g annular light source
Annular light green light, outer diameter 120mm, inner diameter 58mm
22. Rin-120-5r-0b annular light source
Annular light blue, outer diameter 120mm, inner diameter 58mm
23. Rin-120-5r-0w annular light source
Annular light outer diameter 120mm, inner diameter 58,, 24v 12V
24. Rin-208-3r-60w annular light source
Φ low Angle ring light white light, diameter of 208 mm, inner diameter 172 mm Φ, 23 mm, height and vertical direction Angle 60 °, 24 v, 18 w
25. Rin-206-1r-90w annular light source
Φ low Angle ring light white light, diameter of 206 mm, inner diameter 170 mm Φ, 11 mm height, and vertical direction Angle 90 ° 24 v, 6.8 W
26. Lth-250 *25W bar light source
Bar length 250mm, white light
27. Pwi-2005-2 point light source controller
Point light source controller 20V, 5W, 2-way controller
28. Pwd-6024 light source controller
Light source digital controller 60W, 24V, 4 channels, serial port control
29. Halcon 13.0 teaching software
Machine vision integrated development environment (IDE) : HDevelop
Easy programming in C, C++, C#, and Visual Basic.net
It can be used in product development, research and education
Applicable to 32/64-bit Windows Server 2008 R2/7 / Server 2012/8/10, 64-bit Linux, macOS 10.10/10.11/10.12
Support for multi-core and multi-processor computers
High performance with SSE2, AVX, AVX2, NEON instruction set, and automatic GPU acceleration
Support GenICam, GigE Vision, IIDC 1394, USB, USB3 Vision and Camera Link
Contains HDevelop based experimental examples: one-dimensional code recognition, two-dimensional code recognition, one-dimensional measurement, two-dimensional measurement, template matching, color recognition, textile detection, parts sorting, printing detection, OCR, 3D matching and camera calibration. The experiment instruction manual and experiment instruction manual are provided.
30. La-gc-04k05b-00-r line array industrial camera
Resolution 4096 × 2 color
Pixel size 7.04 micron
13 KHZ frame frequency
Data interface GigE Vision
Data format 8/12bit
Dynamic range >60dB
Size 62 * 62 * 46.7 mm
Adapter access M42×1, c-mount, f-mount adapters available
Weight < 280 g
The power consumption of 8 w
Operating temperature 0℃~65℃
31. Ml-3528-43f industrial lens
F port, focal length 35mm, multiplier range ∞~0.5x, working range ∞~68mm
32. Ol-300w linear light source
Luminous length 300mm, white light

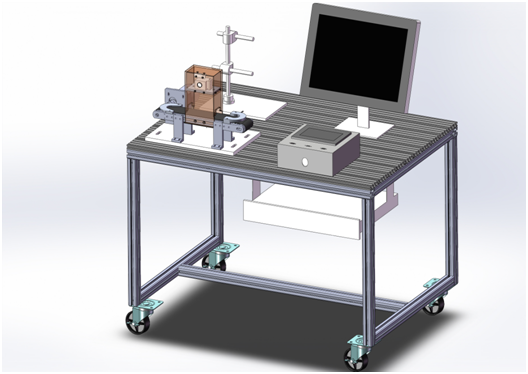

33. System device
The bottom plate of the system is designed by 20*80 European standard aluminum profile, the table adopts 40*40 European standard profile, fu ma foot wheel, laser cutting sheet metal design, the control system is ac servo motor (400W), servo controller, support simulation development platform, provide upper computer measurement and control system, main hardware resources include: (1) main control chip: TMS320F28335; (2) A/D and D/A channels: in addition to the A/D channels carried by DSP itself, additional D/A conversion channels with more than 4 channels and 12 bits should be extended to generate arbitrary waveform programmatically. The maximum output voltage range is ±10V. (3) expanding I/O: in addition to the I/O port of DSP itself, it is necessary to expand the multi-channel optocoupler isolation output port (more than 6 channels) and multi-channel optocoupler isolation input port (more than 6 channels). (4) man-machine interface: color touch screen above 7 inches is adopted to display real-time motor speed, frequency, current date and time, etc. (5) upper computer software: start, stop, frequency adjustment, given speed adjustment, PID parameter setting and other functions can be realized through the upper computer; At the same time, the waveform of current and velocity feedback can be observed in real time. (6) communication interface: 1 CAN interface, 1 USB interface, and 1 10M/100M Ethernet interface for user expansion. (7) power module: IPM module is adopted, with the maximum output power of 3.5kw. (8) protection function: with over voltage, over current and over heat protection function, PWM pulse output is immediately blocked when protection occurs. Provide man-machine exchange interface and upper computer software to realize start, stop, frequency regulation, given speed regulation, PID regulation and other control; At the same time, the upper computer can observe current, velocity feedback and other waveforms in real time. (9) provide the source code for students to modify and debug the program, and provide relevant experimental instructions. Open part of PWM interface (more than 6 channels), I/O port, CAP port, A\D, D\A and other peripheral circuit interface, for the expansion of different experiments, that is, DSP board should be open secondary development board. Using DSP simulator download the different control algorithm to DSP chips, a variety of standard interface (SCI, JTAG, etc.), display module, capture the pulse generation unit, optical signal processing unit, power supply, motor control unit, motor driver chip in and so on, design at least 2 kw of power, support a variety of motor control, support 24 v system and high pressure system. It can drive 2.2kw three-phase asynchronous motor, including CCS software configuration and use. Experimental steps and experimental waveform are provided when bidding. Supporting DSP real-time online simulators (professional simulators produced by relevant companies designated by TI company), which are used for DSP program simulation, development and application program burning. This system is required to conduct real-time control under Windows operating system, and it is equipped with motor control real-time control software and Matlab real-time control module library. Users can use Simulink library to build control algorithm, in Matlab development of ac asynchronous motor SPWM, SVPWM and closed-loop magnetic field orientation algorithm frequency conversion speed control program. Provide PMSM vector graphics programming control case source code, prototype bidding field demonstration. Supporting aluminum alloy platform, identification system, gantry frame, differential encoder, transmission belt, etc.
34. The object under test
Chip, cloth, three core wire, bottle cap, one dimensional code, qr code, parts, OCR
35. Lenovo M4600, the operating terminal
I5 processor, 8G memory, main board with PCIE X4 or above slot, hard disk 1T, integrated or independent graphics card, Taiwan machine, brand products
