1. Dh-pol-fp380 remapping station

The height of the column is 500mm, the bottom plate is 380 x 260mm, the adjustment range of the fine-tuning platform is 20mm~+20mm with camera bracket and light source bracket

2. Mer-132-30uc industrial camera

Resolution 1292 (H) x 964 (V)

The frame rate of 30 FPS

Sensor type 1/3 "CCD

Pixel sizes are 3.75 microns by 3.75 microns

Spectrum of black and white

Image data format MONO8 /MONO12 / RAW8 (Bayer) /RAW12 (Bayer)

Data interface Mini USB2.0

Power consumption rating <1W (@5v DC)

Lens interface C

Mechanical dimensions 29 x 29 x 29 mm, without connectors

Operating temperature 0° C ~ +60° C

Working humidity 10% ~ 80%

The weight 42 g

3. M1214-mp prime lens

Target surface 2/3" interface C focal length 12.0mm aperture f1.4-16c

4. Bts-120 *200W backlight

Backlight, luminous size 120*200mm, white light

5. Rin-120-5r-0r annular light source

Annular red light, outer diameter 120mm, inner diameter 58mm

6. Lth-250 *25W bar light source

Bar length 250mm, white light

7. Pwd-6024 light source controller

Light source digital controller 60W, 24V, 4 channels, support serial control

8. Halcon 13.0 teaching software

Machine vision integrated development environment (IDE) : HDevelop

Easy programming in C, C++, C#, and Visual Basic.net

It can be used in product development, research and education

Applicable to 32/64-bit Windows Server 2008 R2/7 / Server 2012/8/10, 64-bit Linux, macOS 10.10/10.11

/ 10.12

Support for multi-core and multi-processor computers

High performance with SSE2, AVX, AVX2, NEON instruction set, and automatic GPU acceleration

Support standards such as GenICam, GigE Vision, IIDC 1394, USB, USB3 Vision and Camera Link, including HDevelop experimental examples: one-dimensional code recognition, two-dimensional code recognition, one-dimensional measurement, two-dimensional measurement, template matching, color recognition, textile detection, parts sorting, printing detection, OCR, 3D matching and Camera calibration. The experiment instruction manual and experiment instruction manual are provided.

9. System devices

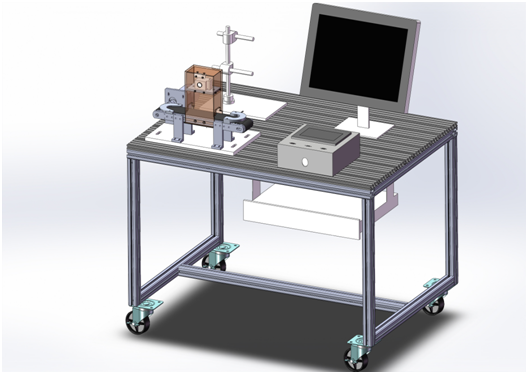

The system backplane from 20 * 80 European standard aluminium profile design, 40 * 40 European standard profile is used for the table body and the feet wheel, laser cutting, sheet metal design, form a complete set of 400 w ac servo system, provide the 7 inch touch screen control, provide source files, etc., form a complete set of aluminum alloy frame, identification system, gantry, differential encoder, speed display system (with 0 ~ + 10 v analog signal output function, support 400 lines, 600 lines, 1024 lines, common encoder, photoelectric isolation function of RS - 485 interface, and lightning protection, the interface supports Modbus RTU protocol, It is equipped with 1 relay output, which can be set manually or through the modbus-rtu protocol of communication interface. It has the function of buzzer alarm, 6 digital tube display and AC220V (±10%) /50Hz power supply. Standard cabinet instrument 48*96) transmission belt, etc., the design 3D drawings are provided as follows.

10. System devices

The system backplane from 20 * 80 European standard aluminium profile design, 40 * 40 European standard profile is used for the table body and the feet wheel, laser cutting, sheet metal design, form a complete set of 400 w ac servo system, provide the 7 inch touch screen control, provide source files, etc., form a complete set of aluminum alloy frame, identification system, gantry, differential encoder, speed display system (with 0 ~ + 10 v analog signal output function, support 400 lines, 600 lines, 1024 lines, common encoder, photoelectric isolation function of RS - 485 interface, and lightning protection, the interface supports Modbus RTU protocol, It is equipped with 1 relay output, which can be set manually or through the modbus-rtu protocol of communication interface. It has the function of buzzer alarm, 6 digital tube display and AC220V (±10%) /50Hz power supply. Standard cabinet instrument 48*96) transmission belt, etc., the design 3D drawings are provided as follows.

11. Operating terminal

I5 processor, 8G memory, main board with PCIE X4 slot, hard disk 1T, integrated or independent graphics card, keyboard and mouse, desktop, brand products
