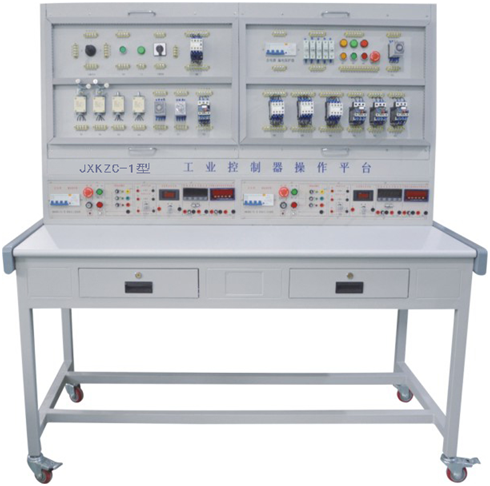

The device adopts the practice of table and mesh plate, the structure of the double location, include the following resources: power supply control, three-phase ac power supply, dc power supply, excitation power supply, the armature power supply, measuring instrument, ac contactor, buttons, lights, time relay, thermal relay, trip switch, intermediate relay, three-phase asynchronous motor, etc. It is suitable for practical teaching, examination and appraisal in universities, colleges and various vocational education and training institutions.

Technical parameters

Input power supply: three-phase four-wire 380V+10% 50Hz: single-phase ac 220V±10% 10A 50Hz

Working environment: temperature: -5 ~ +40℃, temperature <85%(25℃)

Device capacity: < 1.5KVA

Overall dimension: 1620mm×690mm×1660mm

Mesh plate size: 1.5mm stainless steel mesh plate design, 600*700mm.

Weight: < 100Kg
