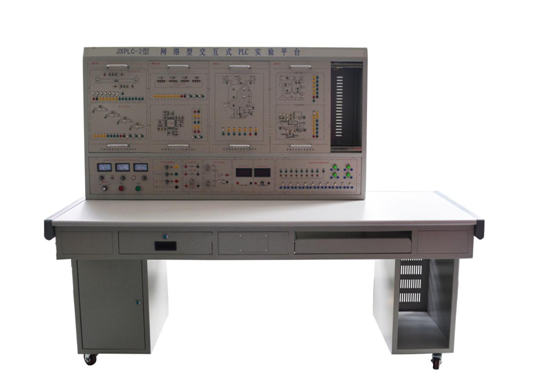

This device is composed of control panel and experiment table, which integrates programmable logic controller, communication module, chimera software, MCGS industrial control configuration software, simulation teaching software, simulation control experiment board and real objects. On this device, can intuitively carry on PLC's compilation instruction exercise, many PLC practical application simulation experiment and the real object experiment, all experiments have the configuration bar diagram to carry on the dynamic tracking. The main engine equipped with the device is s7-200 or F×3U programmable controller. With voltage type and current type leakage protector, if there is leakage in the control panel, the leakage current exceeds a certain 1 straight, that is, to cut off the power supply, to protect personal safety.

Technical parameters

Input power supply: 380V±10% 50Hz for three-phase four-wire system

Capacity: < 1000 va

Working environment: temperature -10℃ ~ +40℃, humidity <85%(25℃)

External dimension: more than 1700mm×7500mm×1400mm (reference)

Weight: less than 120Kg
