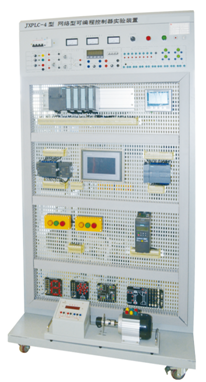

This device is equipped with Siemens s7-200, s7-1200, s7-300, Siemens frequency converter, touch screen, motor unit, programming software, simulation training software and simulation control model. Can be used for students to learn programming, industrial network architecture knowledge and familiar with, industrial Ethernet communication and programming, touch screen, industrial PROFEI8US DP bus control and communication field control, group volunteers software control and monitoring, remote control and industrial complex network architecture design, physical object design and control design and the use of various sensors and industrial components, at the same time can also be multiple PLC practical application of simulation and control of physical teaching.

Technical parameters

Input power supply: 380V±10% 50Hz

Working environment: temperature -10℃ ~ +40℃, humidity <85%(25℃)

Overall dimension: over 1000mm×5000mm×1800mm (overall frame design)

Weight: less than 120Kg
