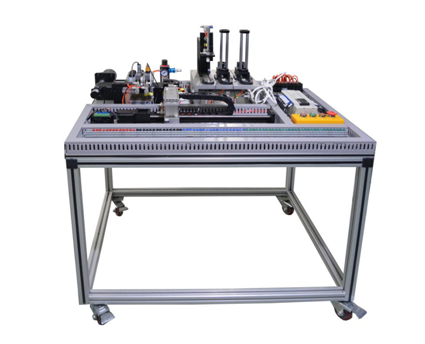

Jxgjd-3a optoelectromechanical integration training device
product description:
This device covers the contents of PLC control, stepper motor speed regulation sensor detection of pneumatic components, mechanical structure installation and system debugging involved in the major of electromechanical systemization and electrical automation. The control system is modular, composed of PLC module dc power module stepper motor driving module and various sensors, which can be flexibly combined to install and debug the horizontal blocks according to the assessment needs. Mechanical parts installation of electromechanical equipment, pneumatic system installation and debugging, electrical control circuit installation, PLC programming electromechanical equipment installation and debugging automatic control system installation and debugging, meeting the requirements of practical mathematics.
Technical parameters
Input power supply: single-phase AC220V± 10% 50Hz
Gas source: 0.3mpa ~ 0.6mpa
Device power: ≤1kVA
Overall dimension: 1000mm×800mm×1530mm
